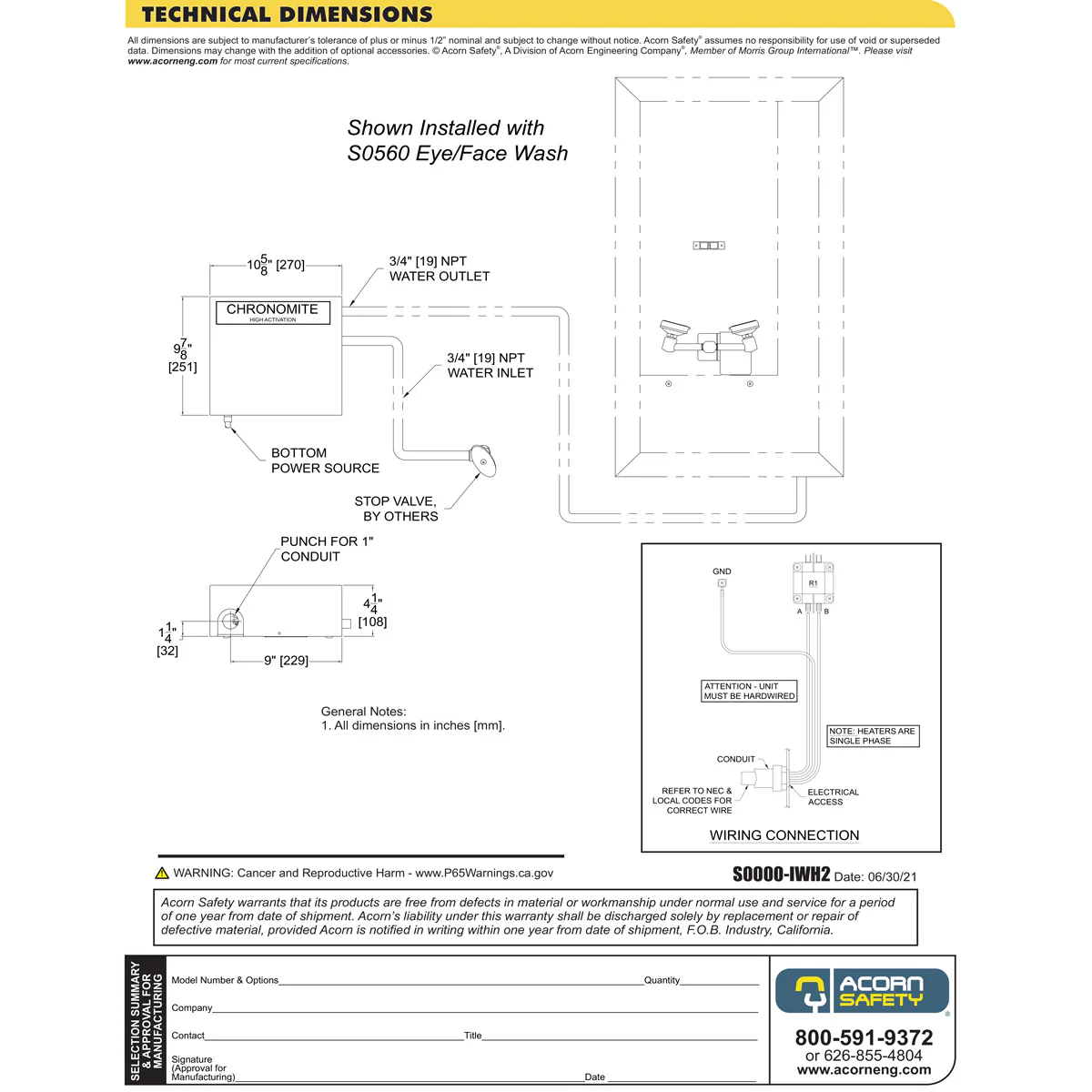

Acorn S0000-IWH2 Instantaneous Water Heater 240V for Eyewash Stations
Model S0000-IWH2 is a point-of-use, instantaneous water heater with Celcon waterways, Nichrome heating coils and capable of maximum temperature rise of 39°F @ 2.0 GPM. The heater provides adjustment for tepid water requirements of 60°F - 100°F.
Heater Assembly:
Rugged steel, white enamel painted housing, Celcon/Ryton element assembly with Nichrome coils that can produce a max imum temperature rise of 39°F at 2.0 GPM.
Water Supply:
3/4" NPT male connections. Minimum operating pressure of 25 psi and a maximum operating pressure of 80 psi. Minimum operating flow rate to activate is 1.8 GPM and will flow up to 5 GPM.
Electrical Requirements:
240 VAC, 48 Amps, 11,500 Watts.
Original: $514.61
-70%$514.61
$154.38Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Model S0000-IWH2 is a point-of-use, instantaneous water heater with Celcon waterways, Nichrome heating coils and capable of maximum temperature rise of 39°F @ 2.0 GPM. The heater provides adjustment for tepid water requirements of 60°F - 100°F.
Heater Assembly:
Rugged steel, white enamel painted housing, Celcon/Ryton element assembly with Nichrome coils that can produce a max imum temperature rise of 39°F at 2.0 GPM.
Water Supply:
3/4" NPT male connections. Minimum operating pressure of 25 psi and a maximum operating pressure of 80 psi. Minimum operating flow rate to activate is 1.8 GPM and will flow up to 5 GPM.
Electrical Requirements:
240 VAC, 48 Amps, 11,500 Watts.
