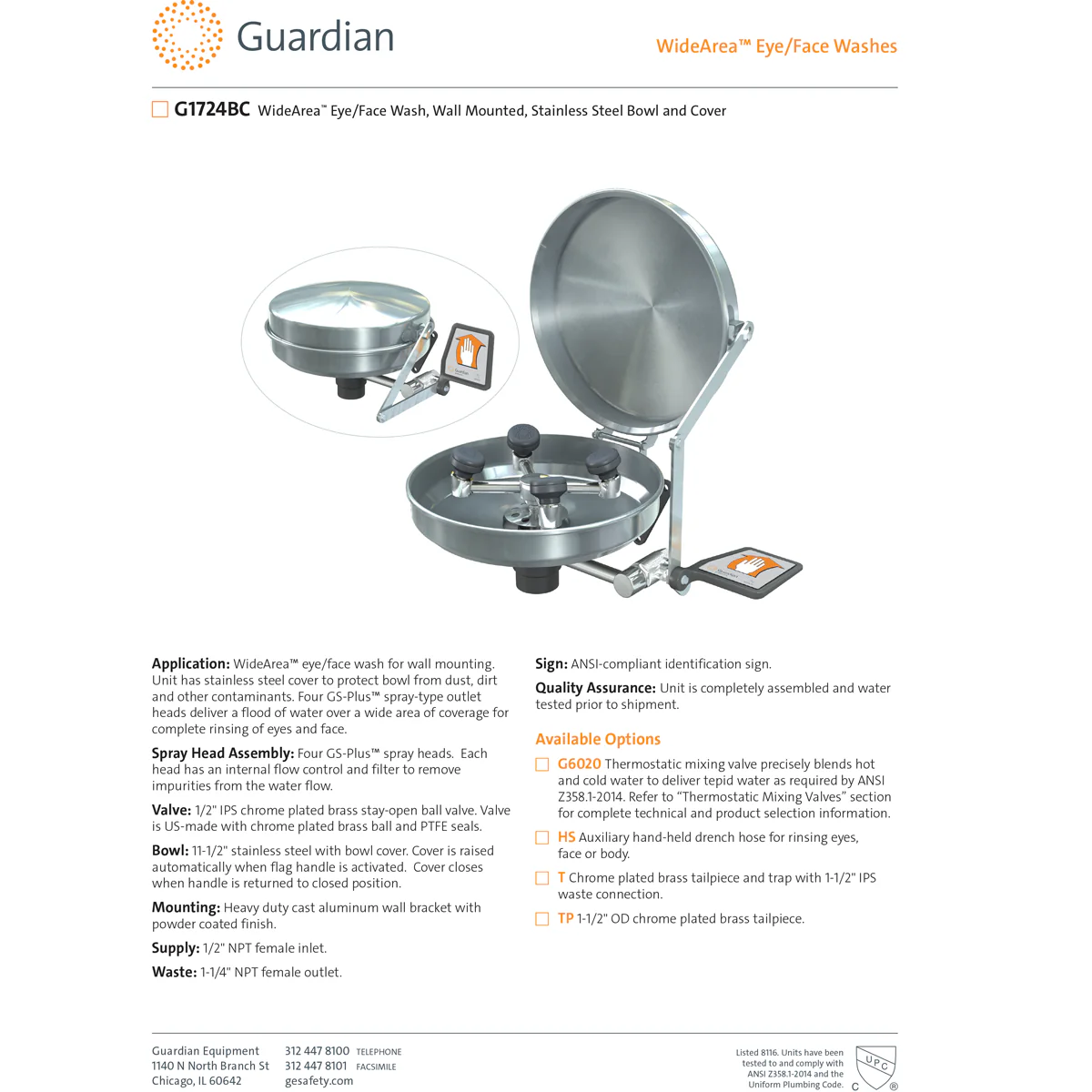

Guardian G1724BC WideArea Eye/Face Wash, Wall Mounted, Stainless Steel Bowl and Cover

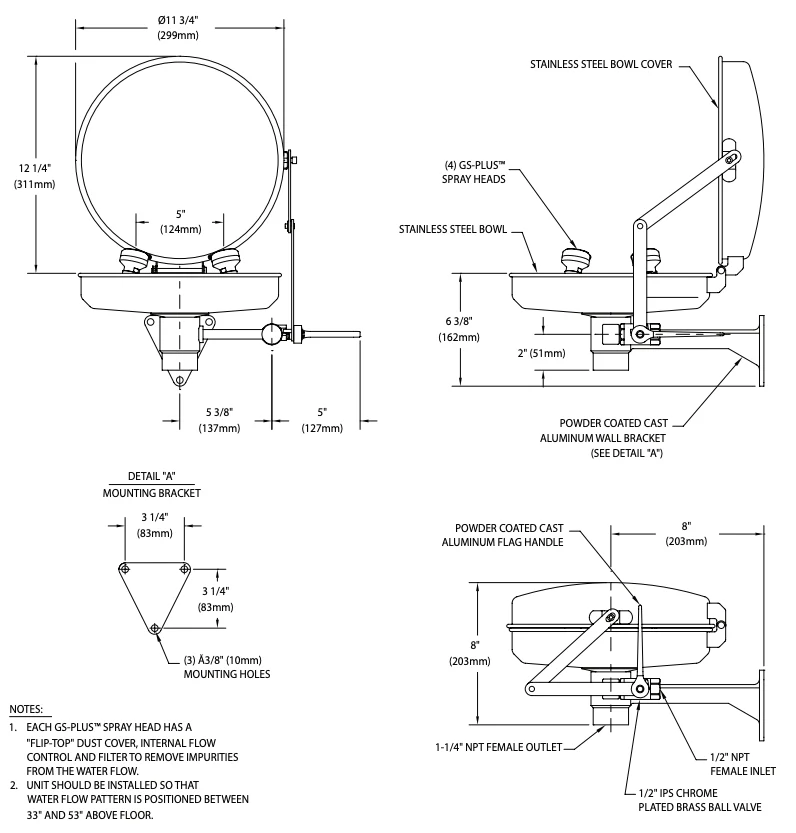

Wall mounted eye/face wash features 12" stainless steel bowl with anodized aluminum wall bracket. Never lose dust covers again! Spray head assembly has four Gentle Spray outlet heads with "flip-top" dust covers mounted on chrome plated brass supply arms. Eye/face wash is activated by a 1/2" IPS chrome plated brass stay-open ball valve with cast aluminum flag handle. Activating eye/face wash valve also opens stainless steel bowl cover, which covers the entire bowl while not in use. Bowl acts like a sink to drain water away. Unit meets ANSI Z358.1 standard as primary eye/face wash. Fully factory assembled and water tested. Complete with ANSI compliant identification sign.
APPLICATION: WideArea eye/face wash for wall mounting. Unit has stainless steel cover to protect bowl from dust, dirt and other contaminants. Four GS-Plus spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.

SPRAY HEAD ASSEMBLY: Four GS-Plus spray heads. Each head has an internal flow control and filter to remove impurities from the water flow.

VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.

BOWL: 11 1/2" stainless steel with bowl cover. Cover is raised automatically when flag handle is activated. Cover closes when handle is returned to closed position.

MOUNTING: Heavy duty cast aluminum wall bracket with powder coated finish.

SUPPLY: 1/2" NPT female inlet.

WASTE: 1 1/4" NPT female outlet.

SIGN: ANSI-compliant identification sign.

QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment. br>
